GM06 DWG to PDF with visible Text

This lesson builds on GM 04 that runs through the import of a DWG and the Export of a PDF.

Initial CAD File

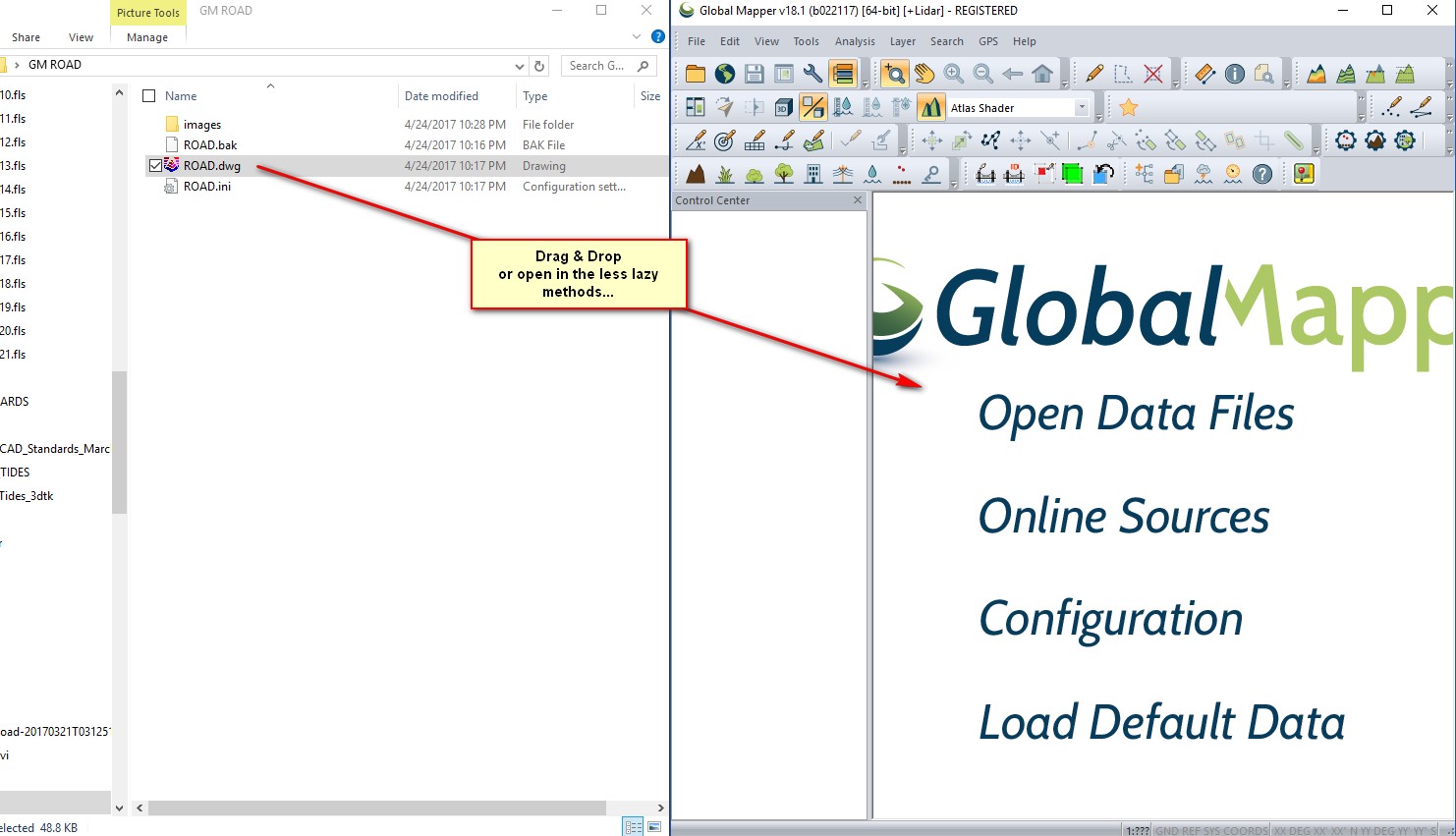

Open the CAD file however you feel comfortable.  I like the lazy drag and drop method.

Open the CAD file however you feel comfortable.  I like the lazy drag and drop method.

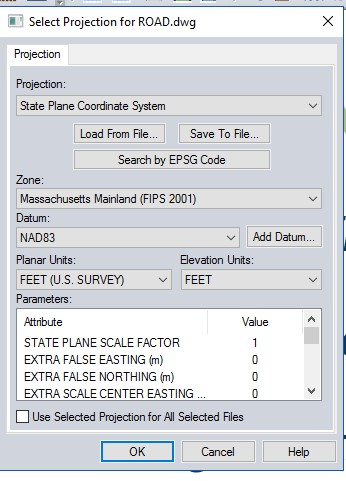

As always, check your projection.

As always, check your projection.

Bam, it is in... but we cannot see the labels.

Bam, it is in... but we cannot see the labels.

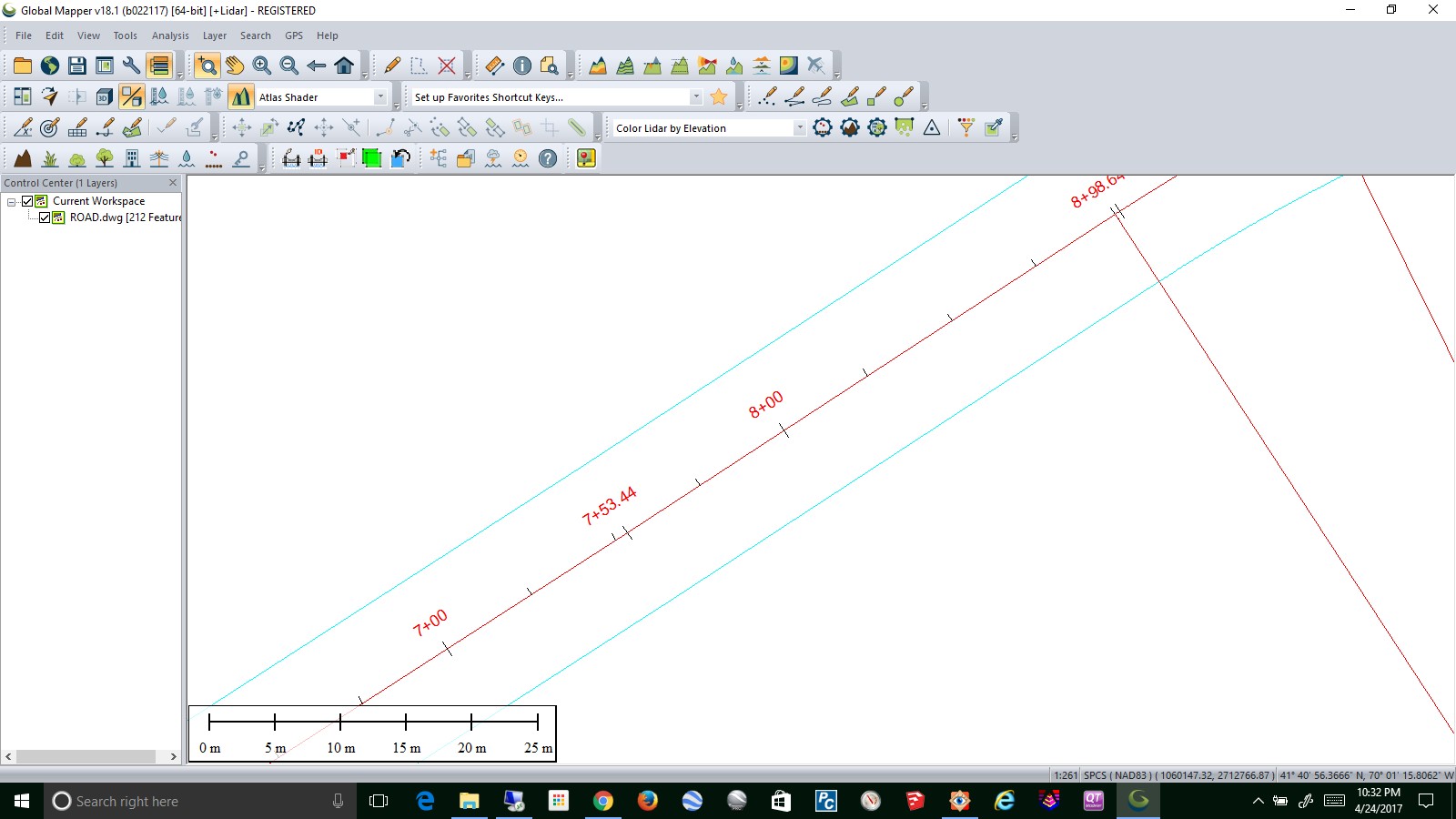

Zooming in, we can see the labels.

Zooming in, we can see the labels.

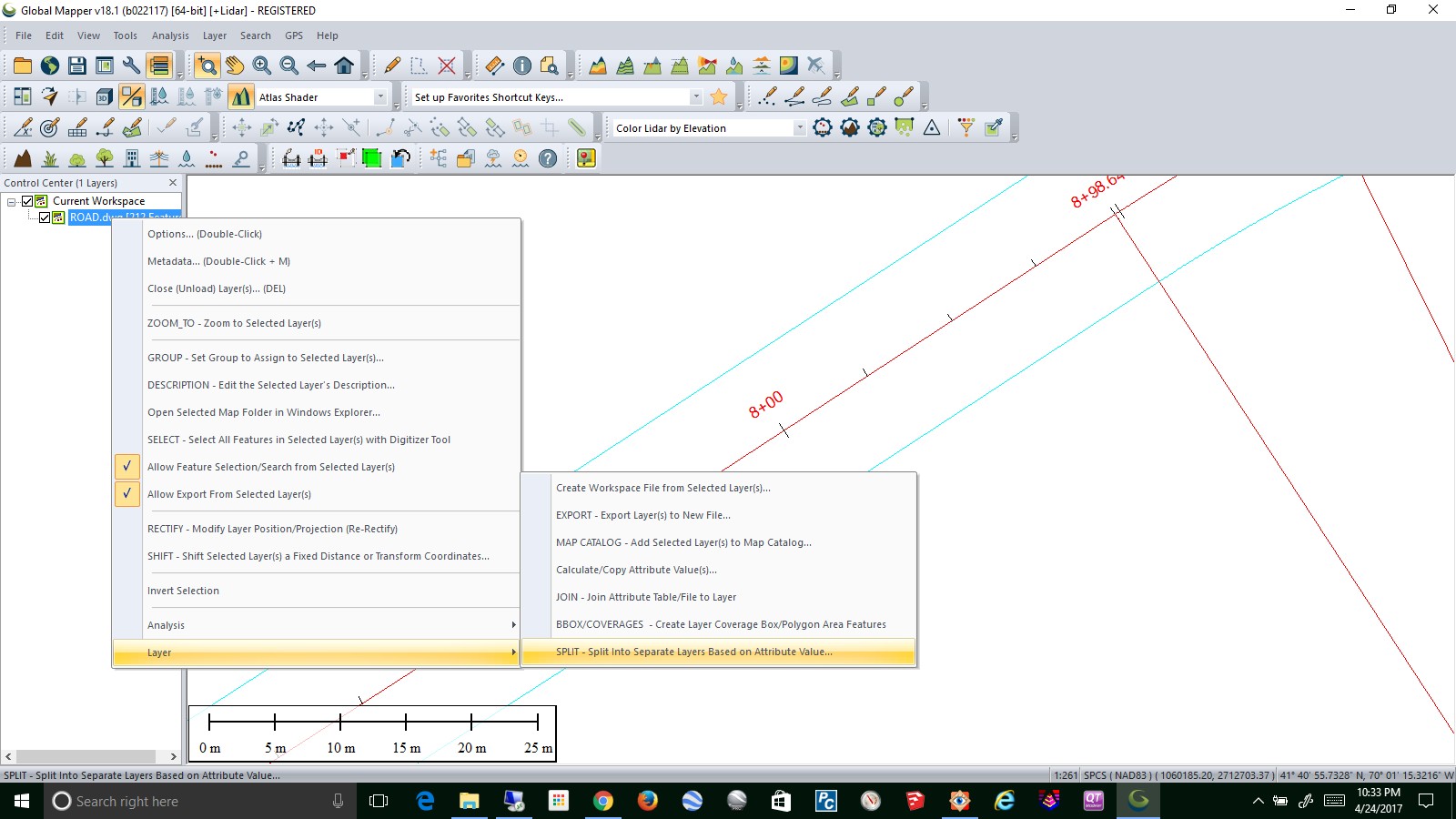

Now we want to be able to select the Text only, so split that onto it's own layer.  Right click the layer in the Control Center and find the SPLIT.

Now we want to be able to select the Text only, so split that onto it's own layer.  Right click the layer in the Control Center and find the SPLIT.

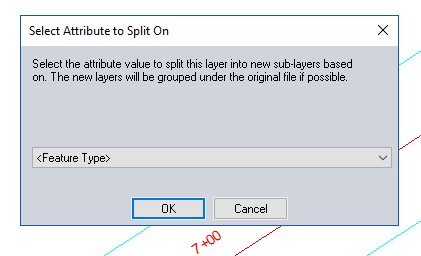

Split is by the feature type.

Split is by the feature type.

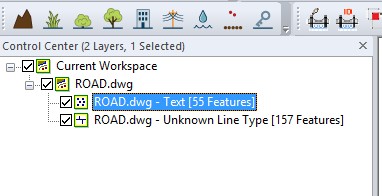

Now all the text is in one sub layer and all the lines are in another.

Now all the text is in one sub layer and all the lines are in another.

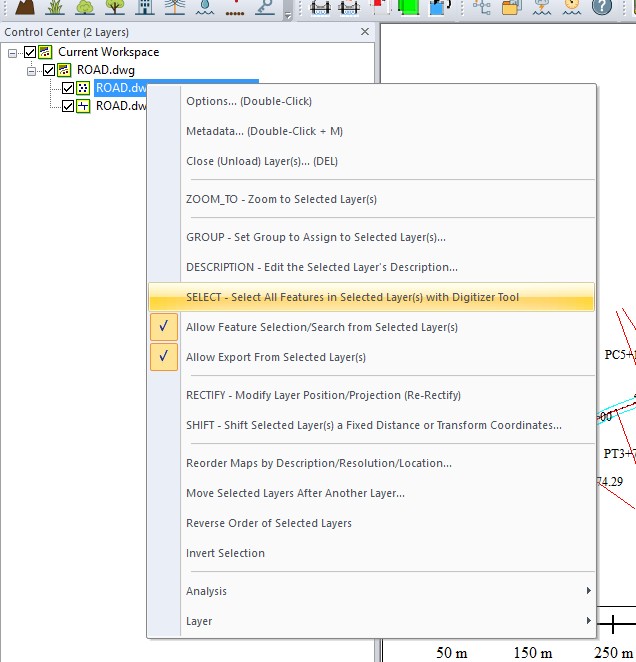

Right click on the text and select all the features (text) on the Text Layer.

Right click on the text and select all the features (text) on the Text Layer.

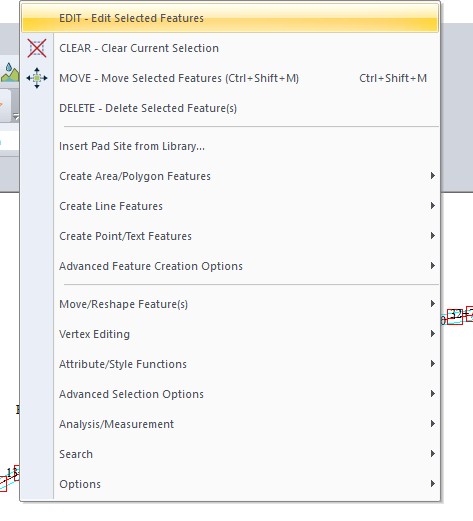

On the screen, right click and EDIT.

On the screen, right click and EDIT.

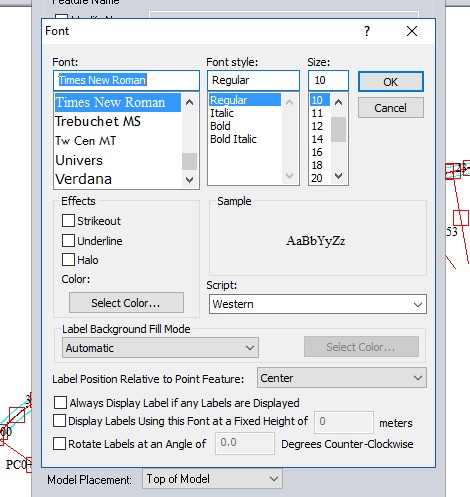

Click on the FONT and choose your font and desired size.

Click on the FONT and choose your font and desired size.

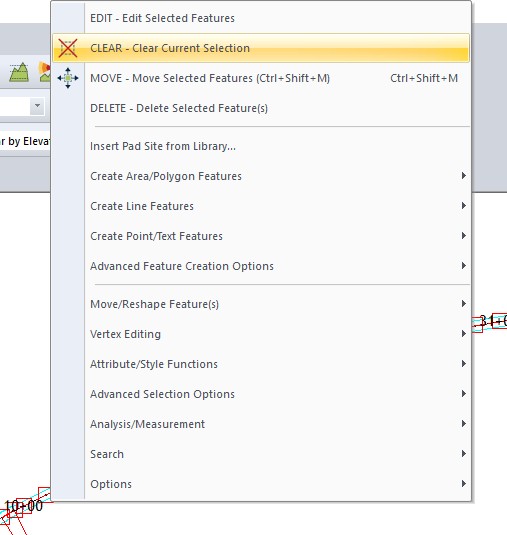

I like to CLEAR the selection when I am done.

I like to CLEAR the selection when I am done.

I found better success using the File -> Export -> Export PDF File

I found better success using the File -> Export -> Export PDF File

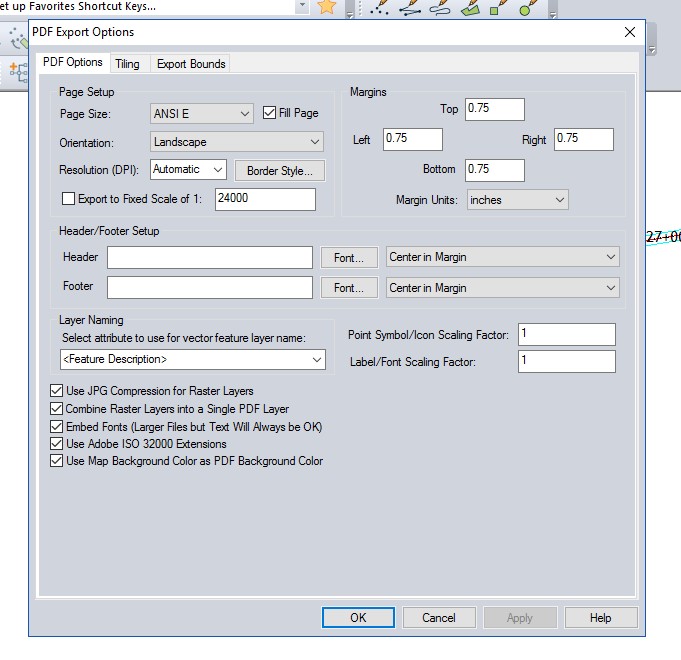

Choose your size.  You can always run a custom size for a very large area.

Choose your size.  You can always run a custom size for a very large area.

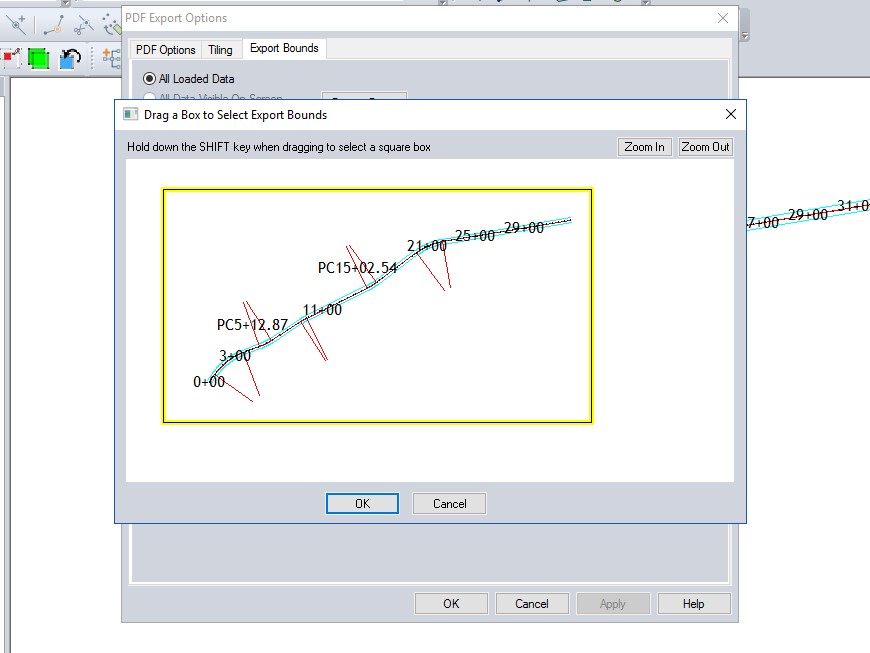

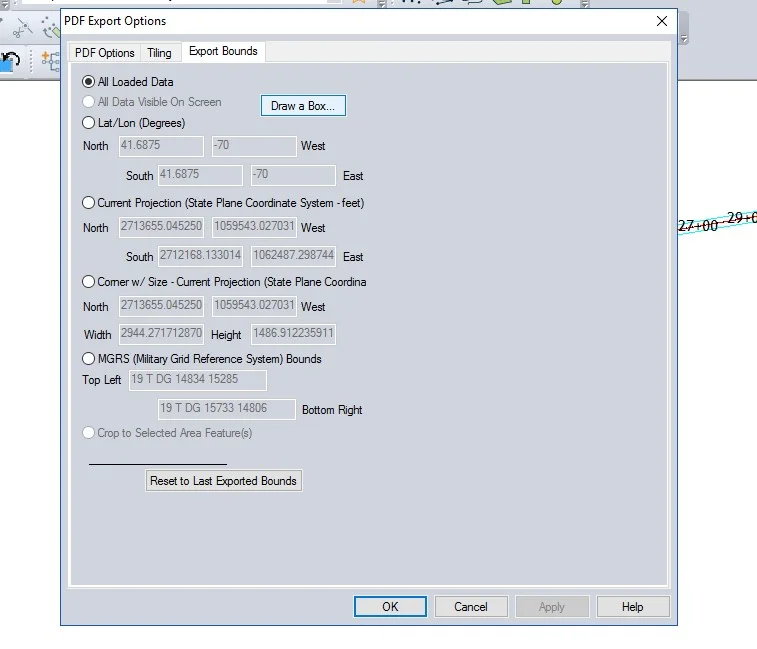

Select your limits.

Select your limits.

I like to draw the box.   Now those labels don't look right in the software, but check out the PDF below...

I like to draw the box.



Now those labels don't look right in the software, but check out the PDF below...

Completed PDF



  • Legibility may be a concern as the text is over a bunch of other stuff.  There is a background fill mode in the FONT that I did not play with.  (Think TEXTMASK).
  • I had issues with some massive custom PDF sizes.
  • Not sure if two PDFs can be merged into one...  that'd be a good one for another day.
