DWG to PDF

This flow is to convert an AutoCAD drawing to a georeferenced PDF that can be imported into Avenza Maps (mobile app).  Scroll to the bottom for additional details.

Open up Global Mapper.  Open Data Files, navigate to the DWG and open it. Or Drag & Drop the file into the software.

Open up Global Mapper.

Open Data Files, navigate to the DWG and open it.

Or Drag & Drop the file into the software.

Make sure your Projection is right.

Make sure your Projection is right.

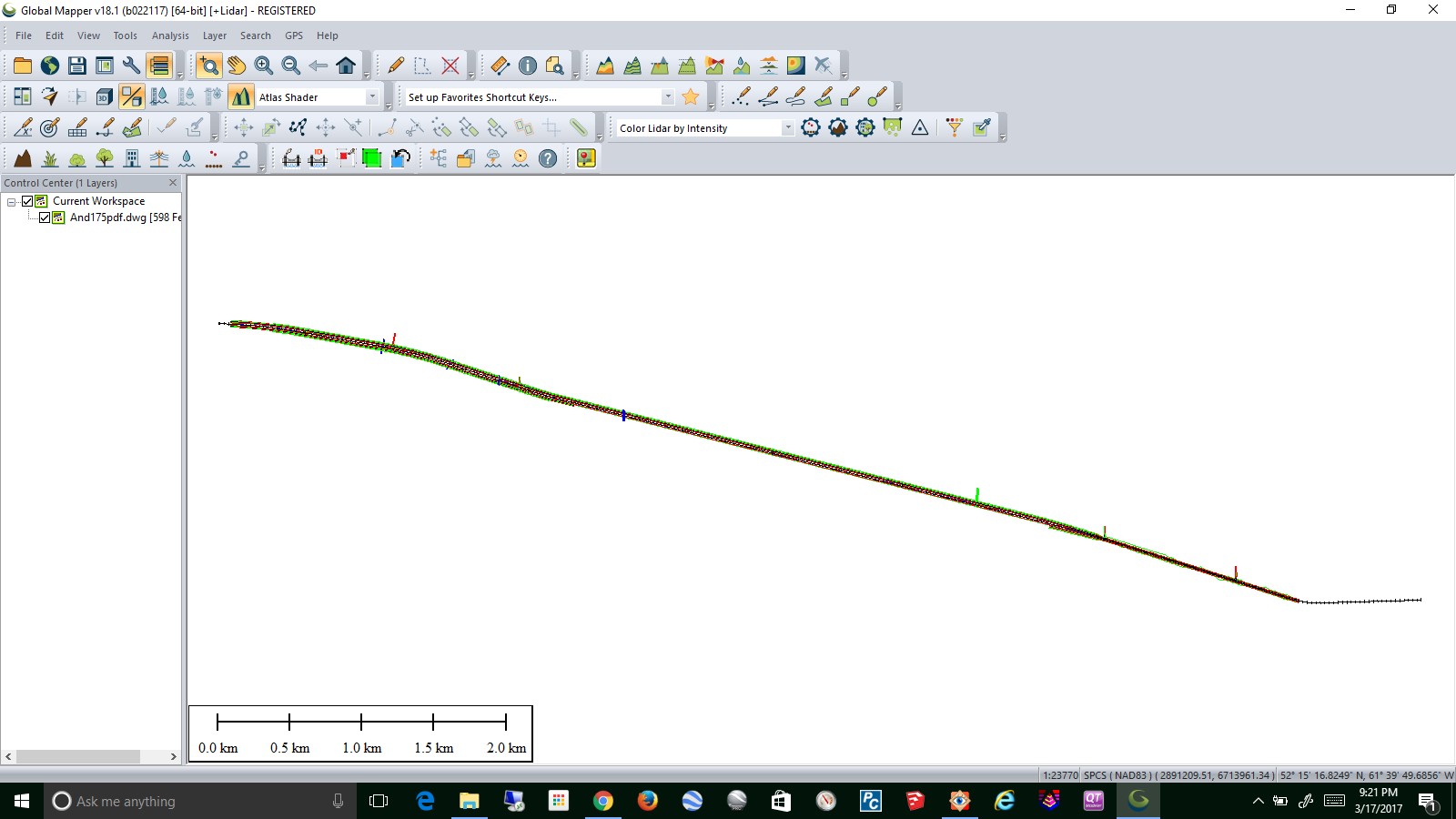

The DWG is in Global Mapper.

The DWG is in Global Mapper.

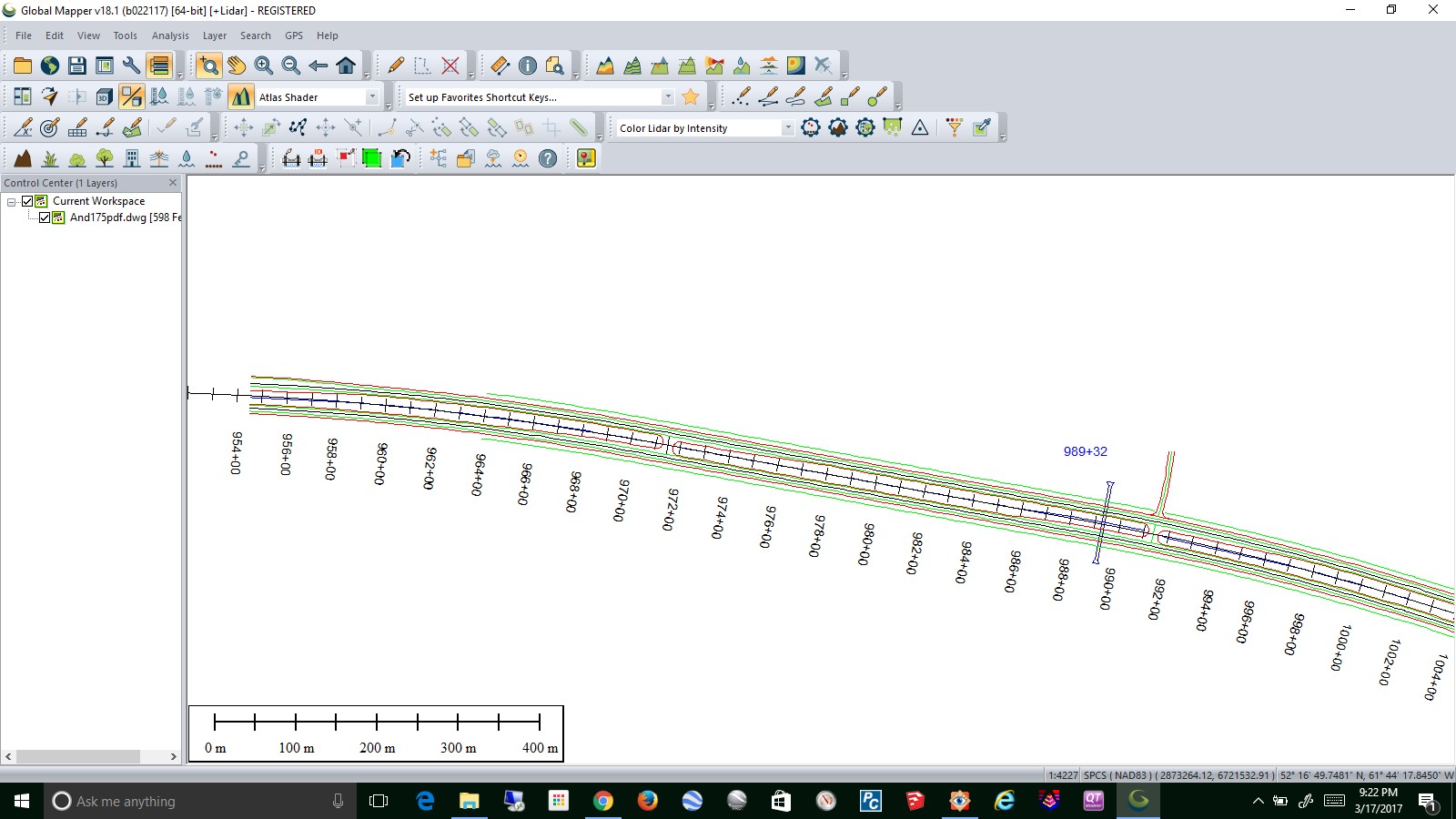

This is zoomed in a bit.

This is zoomed in a bit.

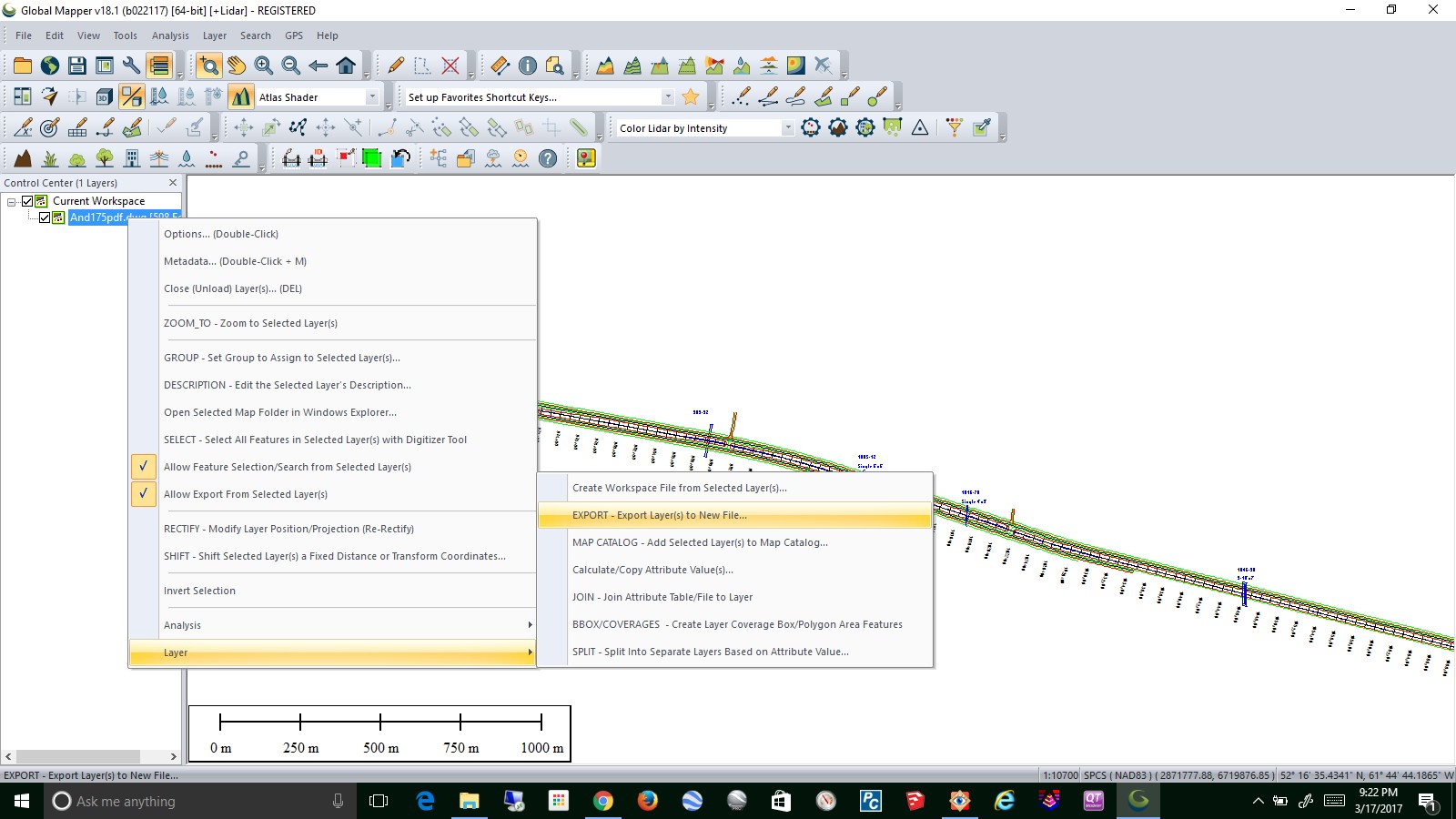

Right click on the DWG in the Control Center -> Layer -> Export

Right click on the DWG in the Control Center -> Layer -> Export

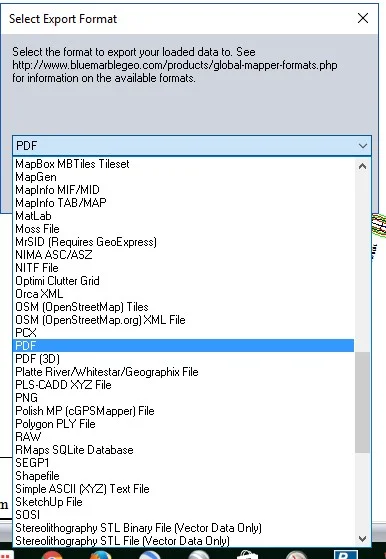

Select your format: PDF.

Select your format: PDF.

Change the page size, resolution, margins and all those settings.

Change the page size, resolution, margins and all those settings.

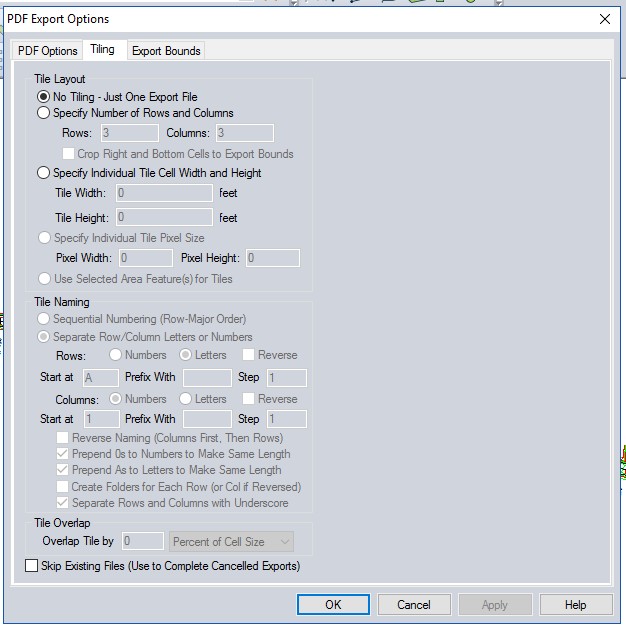

Tiling is a good option to export a grid of files.

Tiling is a good option to export a grid of files.

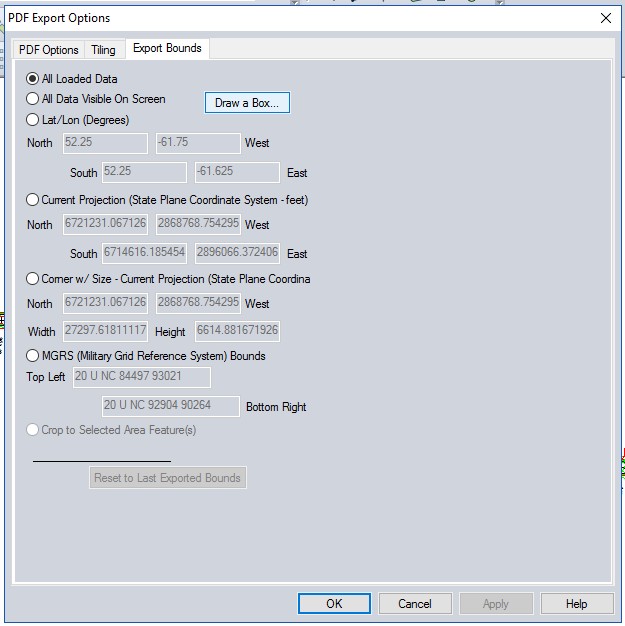

For starters it is easiest to export by a boundary.

For starters it is easiest to export by a boundary.

Choose the boundary you want.

Choose the boundary you want.

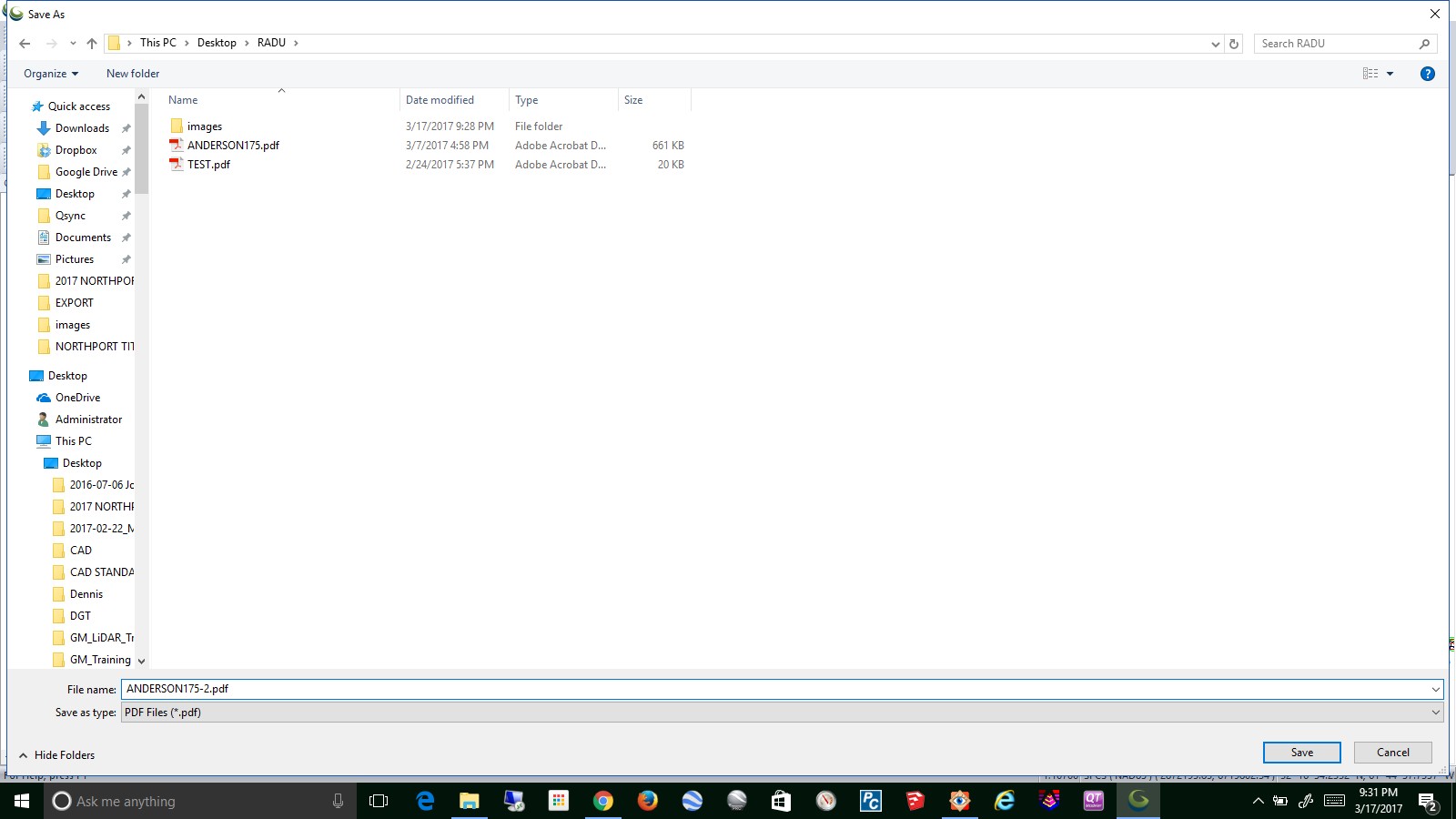

Save the PDF where you want it.

Save the PDF where you want it.

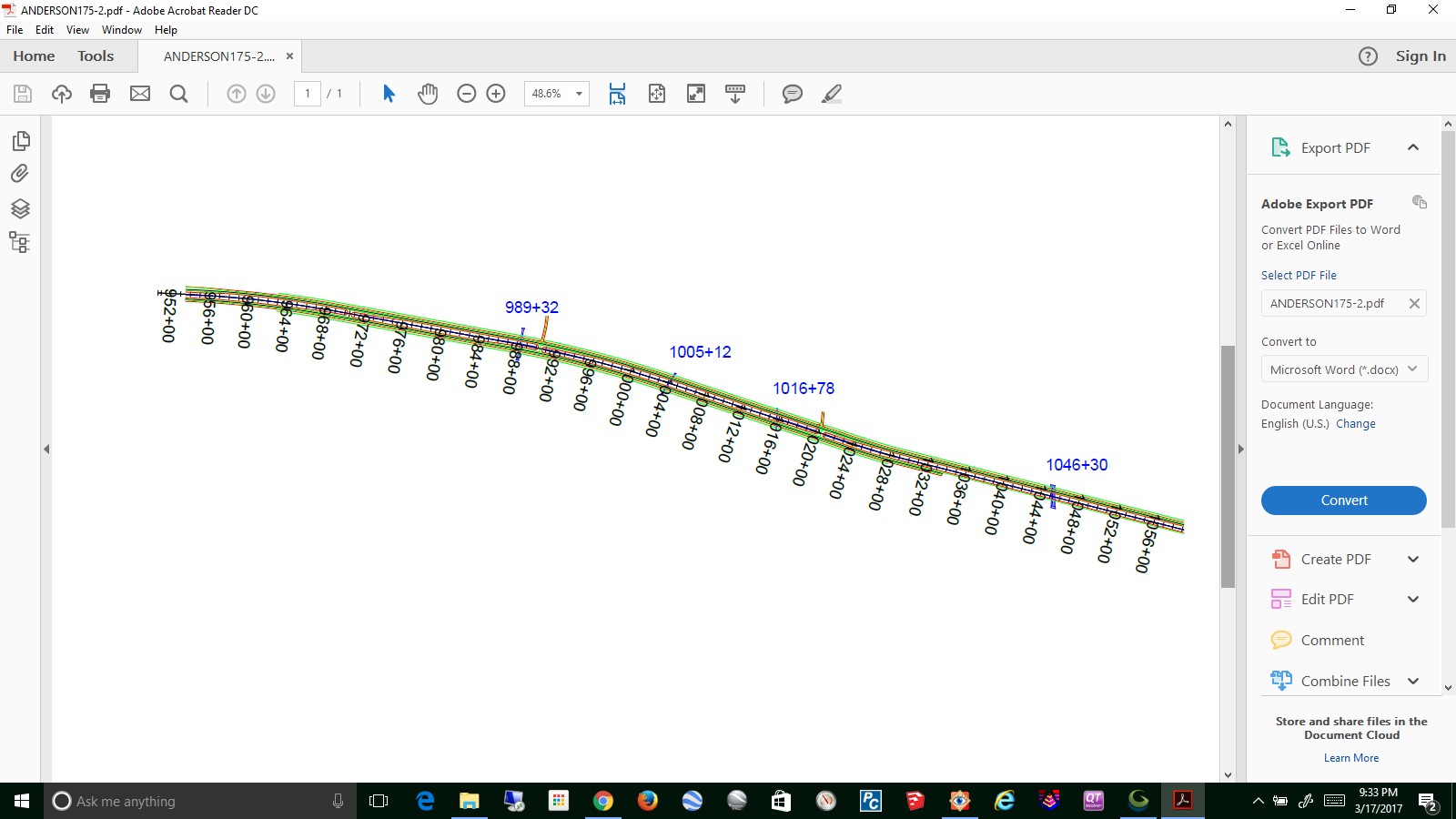

Welcome to PDF Town.

Welcome to PDF Town.

  • The labels are automatically set to a visibility range.  There will be another workflow outlining how to change the visibility range of labels imported from CAD.  Sounds like a plan, see GM-06...
  • The PDF includes georeferencing information and will import into Avenza Maps based on the projection.  There must be some other programs out there that use georeferenced PDFs.
